Home Stainless steel wire mesh Stainless Steel Crimped Mesh
SS Fiber Felt SS Metal Felt Stainless Steel Felt
Back to products
Nickel Foam

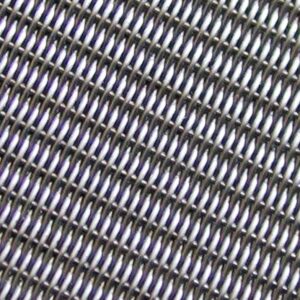

Stainless Steel Crimped Mesh

Due to the special properties of stainless steel, stainless steel embossed mesh is often used in industries with strict requirements for stability. For example, the food industry is used as a net basket for food packaging, and the chemical industry is used for screening and filtering under acid and alkali environmental conditions. The electroplating industry is used as pickling net, the petroleum industry is used as mud net, the building decoration is used as decoration net, and the automobile industry is used as oil-water separator. Stainless steel embossed mesh has been widely used in mining, chemical, pharmaceutical, petroleum, metallurgy, machinery, protection, construction, handicrafts and other industries.

CONTACT US
Category: Stainless steel wire mesh
Share:
  • Description
Description


Product Description

Crimped Wire Mesh Introduction
Crimped wire mesh is the first metal pressed into a pattern, and then through a special process and made of woven. Its grid is square, the material can be wire, black wire, galvanized wire, galvanized redrawing wire, stainless steel wire, etc..The surface treatment of the wire can be galvanized or covered with PVC. Depending on thedifferent  application, the required material and specifications are different.

Crimped wire mesh adopts a knitting method of bending first and then forming, including: two-way wave isolation bending, flat-top bending, two-way bending, locking bending, crimping first and then wovening.
High Carbon Steel Galvanized Crimped Mesh/Stainless Steel Crimped Mesh/Vibrating Mining Wire Screen Mesh

Crimped Wire Mesh Specification
Raw Materials: Iron Wire, Steel Wire, SS wire, etc
Surface: Black, Galvanized, Paninted, Stainless steel, etc
Wire diameter:   0.71mm – 12.5mm
Width:  0.9m,1.0m,1.2m,1.5m,1.8m, customized
Hole type: square, rectangular and long slot.



Wire Gauge(SWG) Wire Diameter(MM) Mesh/Inch Aperture(MM) Weight (KG/Sqm)
14 2.0 21 1 4.2
8 4.05 18 1 15
25 0.50 20 0.61 2.6
23 0.61 18 0.8 3.4
24 0.55 16 0.1 2.5
24 0.55 14 0.12 4
22 0.71 12 0.14 2.94
19 4 2.3 0.18 1.45
6 4.8 1.2 2 20
6 4.8 1 2 20
6 4.8 0.7 3 14
14 2.0 5.08 0.3 12
14 2.0 2.1 1 2.5
14 2.0 3.6 1.5 1.9

High Carbon Steel Galvanized Crimped Mesh/Stainless Steel Crimped Mesh/Vibrating Mining Wire Screen MeshHigh Carbon Steel Galvanized Crimped Mesh/Stainless Steel Crimped Mesh/Vibrating Mining Wire Screen Mesh
Crimped Wire Mesh Types and Application:
1) Galvanized crimped mesh has a variety of materials, widely used in mining, petroleum, chemical, construction, machinery accessories, protective net, packaging network, barbecue net, vibration screen, food machinery network, highway, railway, infrastructure ,etc.
2) Stainless steel crimped mesh is mainly used for food, mining, chemical, pharmaceutical, petroleum, metallurgy, machinery, protection, construction, handicrafts and other industries.
3) Crimped wire mesh panel structure beautiful, durable, and more used in mining, coal plants, construction, petrochemical, construction machinery and other places.



High Carbon Steel Galvanized Crimped Mesh/Stainless Steel Crimped Mesh/Vibrating Mining Wire Screen Mesh

High Carbon Steel Galvanized Crimped Mesh/Stainless Steel Crimped Mesh/Vibrating Mining Wire Screen Mesh



High Carbon Steel Galvanized Crimped Mesh/Stainless Steel Crimped Mesh/Vibrating Mining Wire Screen Mesh

High Carbon Steel Galvanized Crimped Mesh/Stainless Steel Crimped Mesh/Vibrating Mining Wire Screen Mesh

High Carbon Steel Galvanized Crimped Mesh/Stainless Steel Crimped Mesh/Vibrating Mining Wire Screen Mesh



High Carbon Steel Galvanized Crimped Mesh/Stainless Steel Crimped Mesh/Vibrating Mining Wire Screen Mesh

High Carbon Steel Galvanized Crimped Mesh/Stainless Steel Crimped Mesh/Vibrating Mining Wire Screen Mesh


Crimped Wire Mesh Package and Delivery
Package:  Outside the package with a layer of moisture-proof paper, bundle or pallet packaging, can also be packaged according to customer requirements.
Delivery:  About 20-30days after receipt of the deposit.
High Carbon Steel Galvanized Crimped Mesh/Stainless Steel Crimped Mesh/Vibrating Mining Wire Screen Mesh


Introduction: What is HUIRUI?

ISO9001 certified factory, with fixed assets of 20 million yuan, 80 employees and 2R & D departments, has a history of 20 years.

Foam nickel, nickel mesh, stainless steel woven mesh and other leading manufacturers and exporters in the field of wire mesh, and their products have been exported to more than 30 countries.

A professional global supplier focusing on comprehensive solutions such as product manufacturing, drawing design, logistics transportation and technical supervision.


Product: what can HuiRui provide?

Foam nickel, nickel mesh, stainless steel mesh, copper mesh, woven mesh of various materials

Advantage: why choose HuiRui?

Integrity is HuiRui’s best policy;

Mutual benefit and long-term cooperation are HuiRui’s goals;

HuiRui’s unique advantage is based on its competitive price;

Strict quality control and punctual delivery schedule are the basic guarantee of HuiRui


1. What material do you use?

Answer: sus 201 202 321 304 304l 316 316l 310s 904l 2205 410 430 2205 2507 stainless steel wire.

2.What kind of knitting do you use

Weaving: first rolling and then weaving, two-way bending, two-way wave bending, one-way bending features: heat resistance, acid resistance, alkali resistance, corrosion resistance, wear resistance, wide and solid structure.

3.What does mesh mean?

Answer: The number of holes per inch is the mesh number. Under the same wire diameter, the lower the mesh number, the larger the aperture, the higher the mesh number, the smaller the aperture.

4.Can you provide special size or shape? Can you provide samples?

Answer: Support customization of various specifications and provide samples free of charge.

5. What is the minimum order quantity?

Answer: The minimum order quantity is one square meter.

6. Are you a manufacturer?

Answer: Yes, we are a manufacturer of foam nickel, nickel mesh, stainless steel mesh and other woven nets. We have world-class mesh production experience and mainly follow ISO standards, but we can also use ASTM.

7. How long is you delivery time?

Answer:Generally it is 2 days ,if the goods or sample are in stock.

If customized,it is 7-30 days longer time,it is depend on the quantity and product’s specifications

8.Are you close to the sea port?

Answer: Yes, we are near to the one of the biggest port in the world and it’s the one of our advantage to export the cargos worldwide.





Contact us Form

Please feel free to leave your message here, or send an email to tzx@nickelfoam.com

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Related products

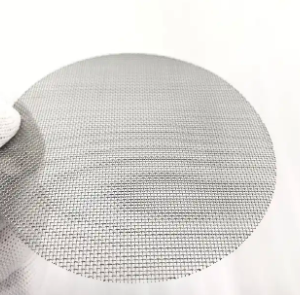

stainless steel woven wire mesh(Macropore)
