HuiRui stainless steel mesh has the characteristics of precise structure, uniform mesh, good filtration accuracy, wear resistance, high temperature resistance, strong acid resistance and corrosion resistance. Because of these characteristics, stainless steel mesh is widely used in mining, chemical industry, food, petroleum, medicine and other industries, mainly for gas, liquid filtration and other media separation.
Since all custom cutting is prefabricated in the factory, it can effectively shorten the construction time and reduce the labor cost of customers.
In terms of packaging and loading, we put all stainless steel woven wire mesh into wooden cases to ensure convenient loading and unloading and avoid damage during transportation.

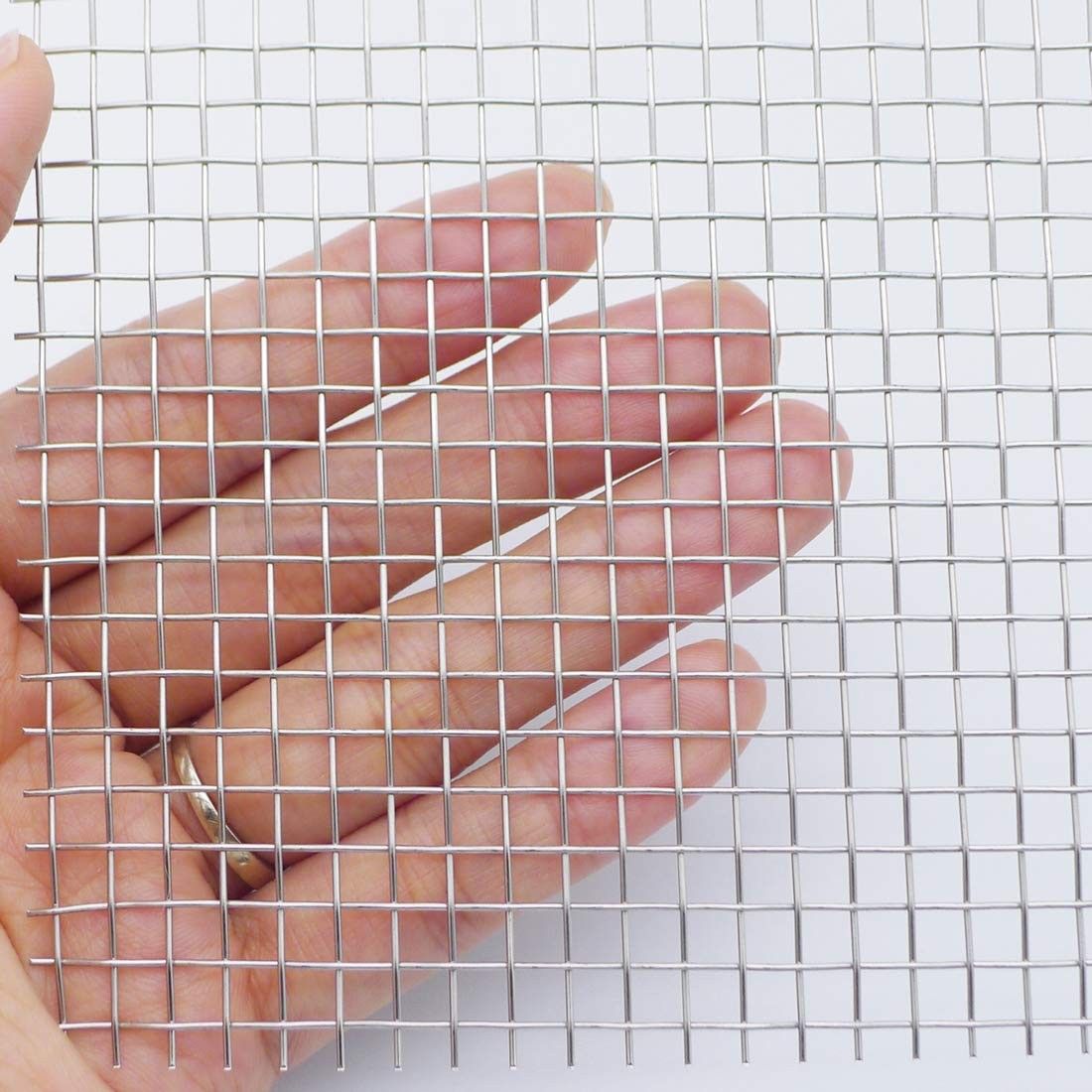

Stainless steel wire mesh is made by stainless steel wire and then woven together to form a square opening or oblong opening.
Due to its own characteristics of stainless steel, the stainless steel mesh processed has high wear resistance, long service life,accurate mesh, uniform structure, no curl, easy to use, uniform screen thickness, anti static, anti-acid and alkali resistance Corrosion.
The product has the characteristics of acid and alkali resistance, temperature resistance, wear resistance and other properties, therefore, in recent years, stainless steel net is widely used in many different fields.
Stainless Steel is one of the most common material used to create woven wire mesh,because it is extremely chemical resistant, works with hot or cold liquids, and is easily cleaned.
Common stainless steel materials used to create woven wire mesh include:304,304L,316,316L,430 etc.
Features of Stainless Steel Wire Mesh
Sturdy construction
Extremely commonly
Easy to install
Low resistance to wind loads
Easily cut to fit
Available in many materials, such as stainless steel 304 and 316

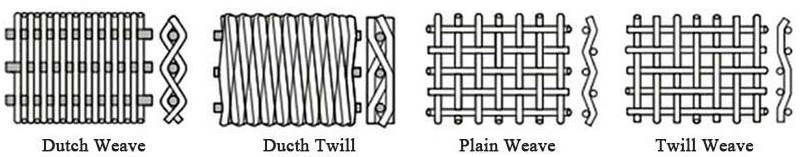

Stainless Steel Wire Mesh Weave Pattern/Style:
1. Plain Weave: also called tabby weave, linen weav or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.
2. Twill Weave: In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left, forming a distinct diagonal line. This diagonal line is also known as a wale. A float is the portion of a yarn that crosses over two or more yarns from the opposite direction.
3. Plain Dutch Weave: similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size.
4. Twill Dutch Weave: similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.
5. Reversed Dutch Weave: difference from standard Dutch weave lies in the thicker warp wires and less weft wires.
6. Five Heddle weave：A knitting method in which each weft thread crosses up and down each and every four diameter threads Or the knitting method in which each weft thread crosses up and down every 2 and every 3 diameter threads
7.Three Heddle weave：The knitting method in which each diametral filament crosses up and down each and every two weft filaments, and each weft filament also crosses up and down each and every two diametral filaments
Stainless Steel Wire Mesh Application:
Since our woven wire mesh is extremely versatile and easy to install, they can be used in a variety of applications.Examples of common applications include:
1. Used in Acid,Alkali environment screening mesh and filtration filter
2. For a slurry net Petroleum industry
3. Chemical fiber industry
4. Filtering liquid and gas
5. Used for Mechanical accessory security etc.
6.Stainless steel wire netting
Packing: wrapped with water-proof paper, then in wooden cases or pallet
Stainless Steel Wire Mesh Note:

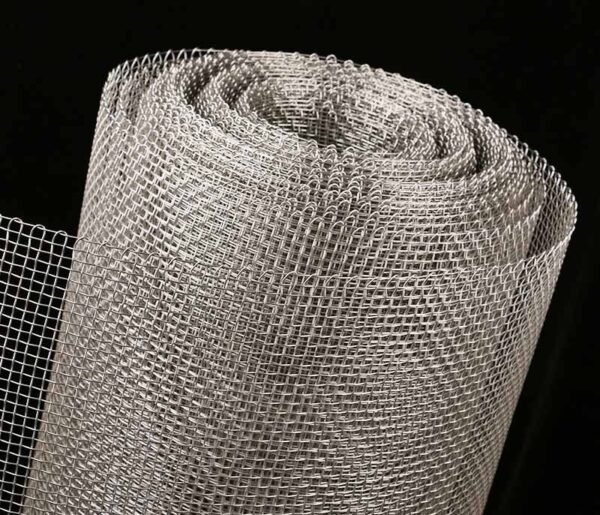

1. Standard roll length 30m,Width 1m,1.2m,1.5m,2.0m etc.
2. Packing: water-proof paper, woven bag and also can be made as per client’s requirement.

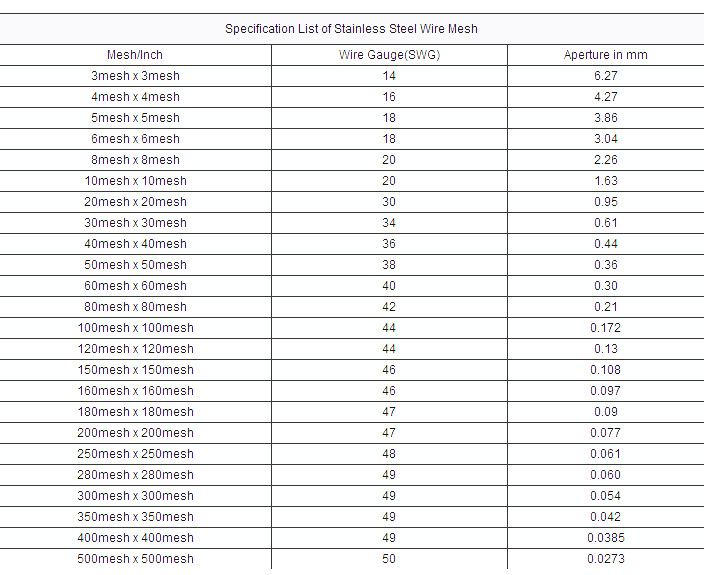

3. Mesh counts: 1 mesh to 3200 mesh.
Introduction: What is HUIRUI?
ISO9001 certified factory, with fixed assets of 20 million yuan, 80 employees and 2R & D departments, has a history of 20 years.
Foam nickel, nickel mesh, stainless steel woven mesh and other leading manufacturers and exporters in the field of wire mesh, and their products have been exported to more than 30 countries.
A professional global supplier focusing on comprehensive solutions such as product manufacturing, drawing design, logistics transportation and technical supervision.
Product: what can HuiRui provide?
Foam nickel, nickel mesh, stainless steel mesh, copper mesh, woven mesh of various materials
Advantage: why choose HuiRui?
Integrity is HuiRui’s best policy;
Mutual benefit and long-term cooperation are HuiRui’s goals;
HuiRui’s unique advantage is based on its competitive price;
Strict quality control and punctual delivery schedule are the basic guarantee of HuiRui
1. What material do you use?
Answer: sus 201 202 321 304 304l 316 316l 310s 904l 2205 410 430 2205 2507 stainless steel wire.
2.What kind of knitting do you use
Answer: The weaving method can be plain weave, twill weave and Dutch weave.
3.What does mesh mean?
Answer: The number of holes per inch is the mesh number. Under the same wire diameter, the lower the mesh number, the larger the aperture, the higher the mesh number, the smaller the aperture.
4.Can you provide special size or shape? Can you provide samples?
Answer: Support customization of various specifications and provide samples free of charge.
5. What is the minimum order quantity?
Answer: The minimum order quantity is one square meter.
6. Are you a manufacturer?
Answer: Yes, we are a manufacturer of foam nickel, nickel mesh, stainless steel mesh and other woven nets. We have world-class mesh production experience and mainly follow ISO standards, but we can also use ASTM.
7. How long is you delivery time?
Answer:Generally it is 2 days ,if the goods or sample are in stock.
If customized,it is 7-30 days longer time,it is depend on the quantity and product’s specifications
8.Are you close to the sea port?
Answer: Yes, we are near to the one of the biggest port in the world and it’s the one of our advantage to export the cargos worldwide.
