🔧 Product Overview

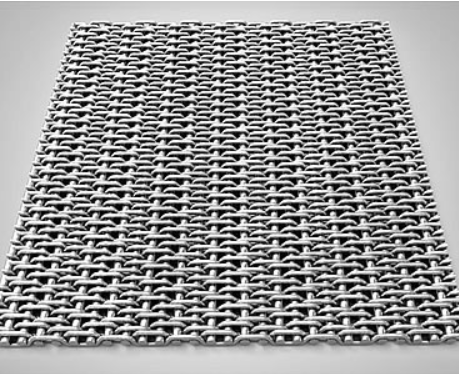

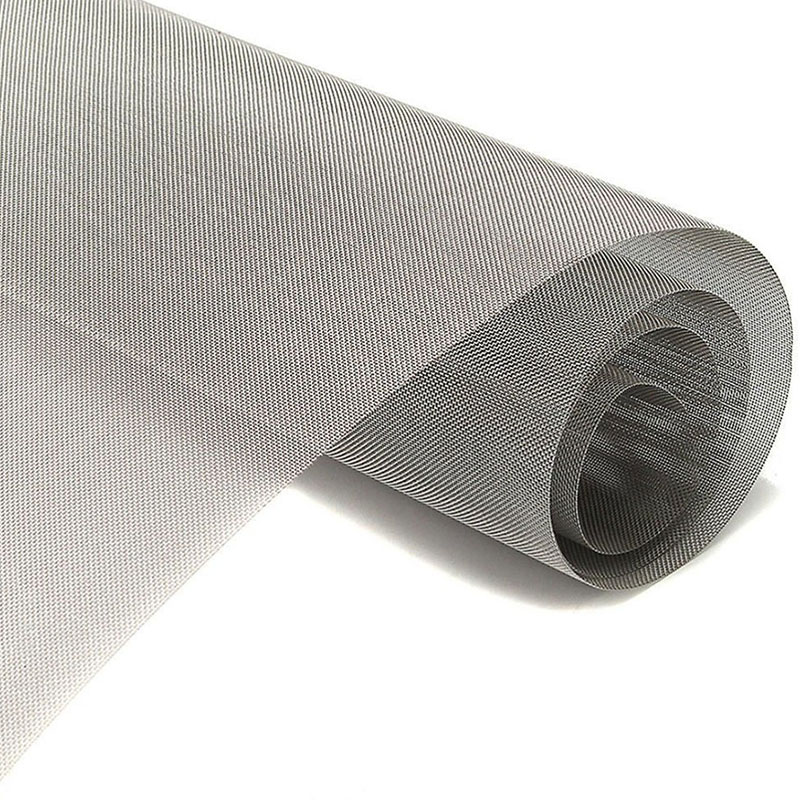

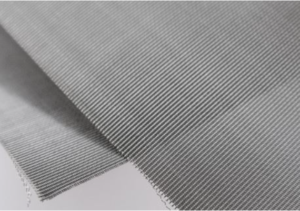

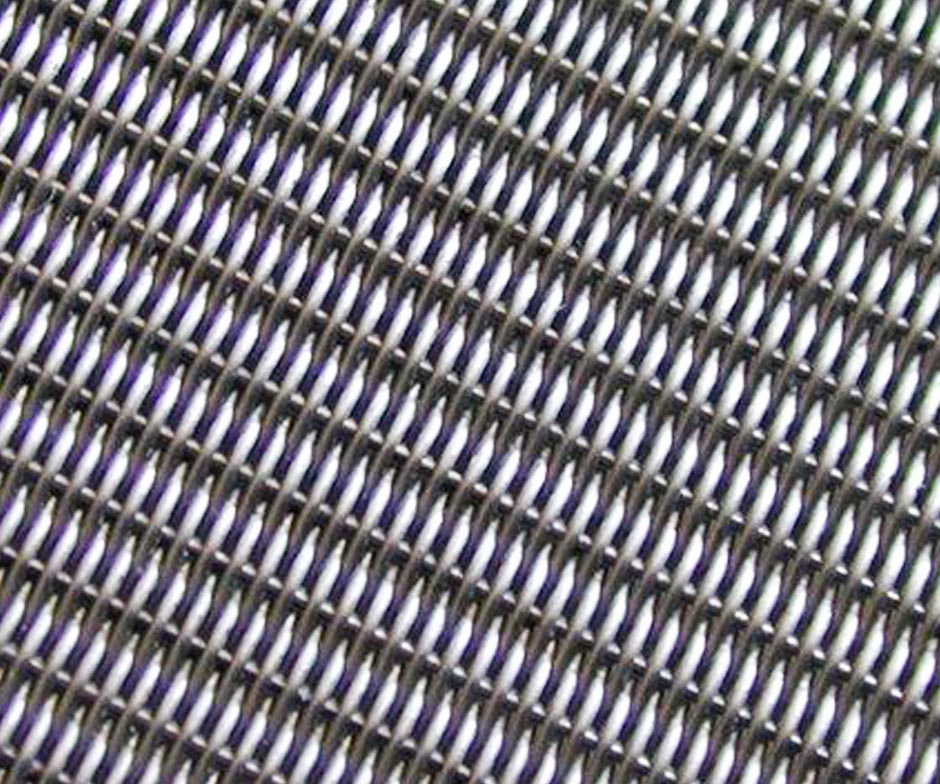

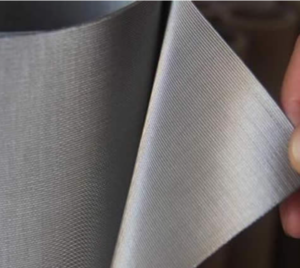

Stainless Steel Dutch Weave Wire Mesh is a high-precision woven filter mesh, specially designed for micron-level filtration applications. Unlike standard square weave meshes, Dutch weave mesh combines a high-density weft (shute) wire with a relatively larger warp wire, forming a tight, strong, and pressure-resistant mesh structure.
Thanks to its unique weave and structure, Dutch weave mesh provides superior filtering performance, ideal for use in liquid and gas filtration, especially in high-pressure or corrosive environments.
We supply Plain Dutch Weave and Twill Dutch Weave, both in stainless steel 304, 316, and 316L, with full OEM/ODM customization support.
🌟 Key Features
-
✅ Micron-Level Filtration – Effective filtration rating from 5 to 120 microns, suitable for fine particle or slurry filtration
-
✅ Corrosion Resistant – Made of 304/316L stainless steel, excellent resistance to acids, alkalis, and oxidation
-
✅ Pressure-Resistant & Durable – Tight weave structure ensures strength under high flow and high pressure
-
✅ Reusable & Easy to Clean – Smooth surface, washable, and reusable for multiple cycles
-
✅ Custom Fabrication Available – Rolls, sheets, filter discs, tube mesh, and welding options available
📐 Technical Specifications
| Parameter | Available Range / Options |
|---|---|
| Material | Stainless Steel 304 / 316 / 316L |
| Weave Type | Plain Dutch Weave / Twill Dutch Weave |
| Micron Rating | 5 – 120 microns |
| Mesh Count | Warp: 10–80 mesh / Weft: 10–3600mesh |
| Wire Diameter | 0.025 mm – 0.5 mm |
| Thickness | 0.1 mm – 1.2 mm |
| Roll Width | 0.5 m – 2.5 m (customized) |
| Roll Length | Standard 10 m / roll or per request |
| Formats Offered | Rolls, cut-to-size sheets, discs, filter tubes |
| Tolerance | ±5% (per customer requirements) |
🛠 Available Types
| Type | Description |
|---|---|
| Plain Dutch Weave | Warp wires are thicker and spaced wider; weft wires are thinner and tightly packed. Ideal for high-precision filtration and strong mechanical strength. |
| Twill Dutch Weave | Similar to twill weave with double-layer crisscross pattern, allows finer mesh openings with more strength. Ideal for heavy-duty filtering tasks. |
🧪 Applications
Stainless steel Dutch weave mesh is widely used in demanding industrial filtration applications:
-
✔ Chemical Filtration – Acid & solvent filters in chemical processing lines
-
✔ Pharmaceutical Industry – Purification and filtration of active ingredients
-
✔ Food & Beverage Processing – Filtration of syrup, beer, edible oil, and dairy
-
✔ Petrochemical & Gas Filtration – Used in catalyst recovery, gas distribution
-
✔ Water Treatment – Pre-filtration and precision filtration in RO/UF systems
-
✔ Hydraulic & Fuel Filters – High-pressure, compact filtration units
🧩 Customization & Fabrication
We offer full customization for:
-
🔹 Mesh count / filtration accuracy
-
🔹 Sheet or roll size
-
🔹 Filter discs / mesh tubes / filter cartridges
-
🔹 Welding, punching, folding or framing
Whether you need cut pieces, welded discs, or assembled mesh filters, our factory can fabricate exactly what your project needs.
📦 Packaging & Shipping
-
Rolls packed with moisture-proof paper and plastic film
-
Discs and cut pieces in cardboard boxes or wooden cases
-
Pallet packaging for bulk shipment
-
Fast dispatch for standard specs; short lead time for custom-made parts
-
Worldwide delivery with export documents and HS code support
🏭 Why Choose Huirui Wire Mesh Factory
-
15+ years in metal filtration mesh production
-
In-house weaving, cutting, welding, and framing workshops
-
Exported to over 40 countries with ISO standard quality
-
Small MOQ accepted, free samples available
-
Full technical support with CAD drawings and engineering advice
📞 Contact Us for a Quote or Sample
Looking for a reliable Dutch Weave Mesh Manufacturer?
Send us your requirements or drawing, and we’ll offer fast quotation, samples, and engineering support.
