Silver wire mesh

Custom silver mesh for conductive screens, electrode components and laboratory assemblies. Choose woven or expanded construction, compare the specification options below, or send your drawing.

Material
Silver (Ag)
Construction
Woven or expanded
Selection focus
Structure, dimensions and composition

Leave us a message — we’ll reply within 30 minutes!

Request a Silver Mesh QuoteOr email tzx@nickelfoam.comInclude dimensions, quantity and composition requirements if available. A complete specification is not needed to start.
CONTACT US
Category: Special material mesh
Share:
  • Description
Description

Choose the right silver mesh construction

Silver is valued for its electrical conductivity, making silver mesh a candidate for current-collection, electrode and other conductive components. Construction matters: woven mesh and expanded mesh have different geometries and are specified differently.

Construction How it is made Key specification details

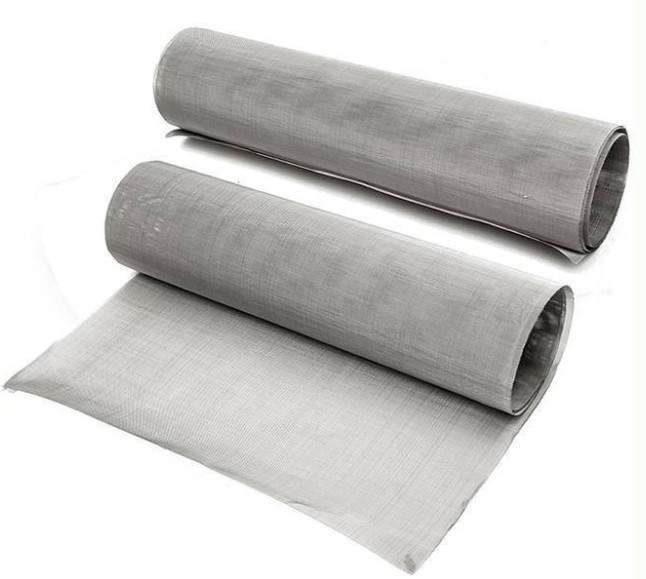

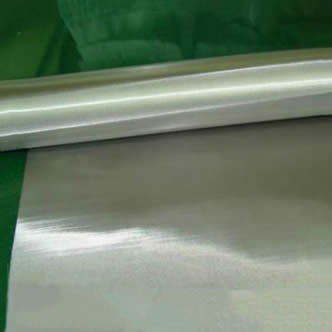

Woven silver wire mesh Silver wires are interlaced to form a mesh. Weave, wire diameter, mesh count or opening, and overall dimensions.

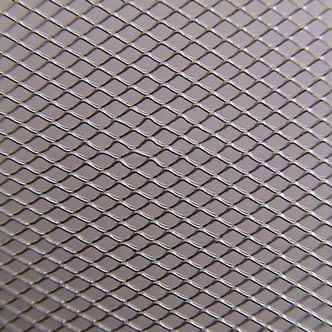

Expanded silver mesh Silver sheet is slit and stretched to form a connected mesh, commonly with diamond-shaped openings. Short and long way dimensions, strand width, sheet thickness and overall dimensions.

Custom silver woven-mesh specification guide

Custom mesh specifications available. Use the combinations below as starting points, or send your drawing and application requirements.

Mesh count / in Wire diameter (mm) Calculated nominal opening (mm)
20 0.35 0.92
20 0.23 1.04
24 0.35 0.7083
28 0.25 0.6571
30 0.305 0.5417
40 0.254 0.381
60 0.191 0.2323
80 0.14 0.1775
100 0.102 0.152
150 0.066 0.1033
180 0.0584 0.0827
200 0.0533 0.0737

Square-opening woven mesh geometry is calculated from mesh count and nominal wire diameter. Final grade, weave, tolerances and dimensions are confirmed with your quotation.

Calculated nominal opening = 25.4 ÷ mesh count − wire diameter (mm), rounded to 0.0001 mm where needed. These design values are not inspection results or manufacturing tolerances.

The weave for your selected square-mesh combination is confirmed with the quotation.

These woven-mesh calculations do not apply to expanded silver mesh.

Expanded silver mesh: custom specification details

Expanded silver mesh is made from slit and stretched sheet, not from woven wire. Send a drawing or the dimensions below so the pattern and finished size can be quoted together.

Expanded-mesh parameter Details to include
Diamond pitch: LWD × SWD Specify long-way and short-way dimensions measured between corresponding node centres.
Clear opening, if critical State long-way and short-way clear opening separately, or mark the measurement on a drawing. Pitch and clear opening are not interchangeable.
Strand width Give the required width of the metal strand, in mm.
Thickness and profile Specify base sheet thickness and whether the mesh is raised or flattened. Add finished overall thickness if it is critical.
Finished size and orientation Width × length, diamond orientation, quantity and any cutting requirements.
Material and surface Required silver composition, cleanliness and material-document needs.

LWD/SWD pitch, clear opening and finished thickness must use the measurement convention agreed in the quotation; the woven-mesh formula above does not apply.

Specify your custom silver mesh

Start with the information you have: mesh or opening, finished size and quantity. A drawing, reference sample or short application description is also welcome.

Custom requirement Details to include
Silver composition State the required silver content, impurity limits and any material-document needs.
Construction Woven silver wire or expanded silver sheet. For woven mesh, state a weave if required; the table does not assign one to each row.
Woven geometry Mesh count and wire diameter, a target opening, or a reference sample or drawing.
Finished dimensions Width × length, piece or roll format, quantity and any edge or component drawing requirements.
Operating environment Electrolyte or contacting medium, electrical conditions and temperature where relevant.
Surface and tolerances Required cleanliness, handling or packaging; identify critical dimensional tolerances and inspection needs.

You do not need to complete every technical detail before requesting a quote.

Conductive and electrode applications

Silver mesh may be considered for battery current collectors, electrode supports and other conductive assemblies. Selection should account for the cell chemistry or operating environment as well as the mesh geometry.

For filtration or separation projects, specify the required opening and process medium. Mesh count alone does not establish a filtration rating.

Frequently asked questions

What is the difference between woven and expanded silver mesh?

Woven mesh is made from interlaced silver wires. Expanded mesh is made by slitting and stretching silver sheet. Expanded mesh is not produced by stretching an already woven wire mesh.

Is this the same as silver-plated mesh?

No. This page concerns silver wire or silver sheet mesh rather than a silver coating over a different base metal. State the required composition in your inquiry so it can be matched to the quotation.

Can silver mesh be used as a battery current collector?

It can be considered where the cell design calls for silver. Suitability depends on the electrolyte, electrode potential, operating conditions and mesh geometry; it should not be assumed for every battery chemistry.

Can I inquire without knowing the mesh count?

Yes. Send a drawing, photo of a reference mesh or short description of the application. For expanded mesh, a sketch showing how the opening is measured is especially helpful. Add dimensions and quantity if known.

Find the right silver mesh for your project

Tell us whether you need woven or expanded mesh, or send a drawing or reference photo if you are unsure. We can start with your application.

Request a Silver Mesh Quote

Or email tzx@nickelfoam.com

Include dimensions, quantity and composition requirements if available. A complete specification is not needed to start.

Related reading: Nickel foam, nickel fiber felt or nickel mesh: how to specify the structure.
