Inconel mesh for heat and corrosion-focused designs

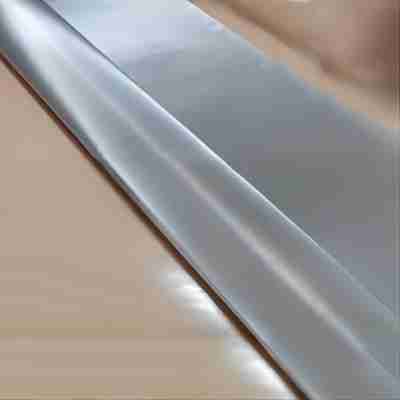

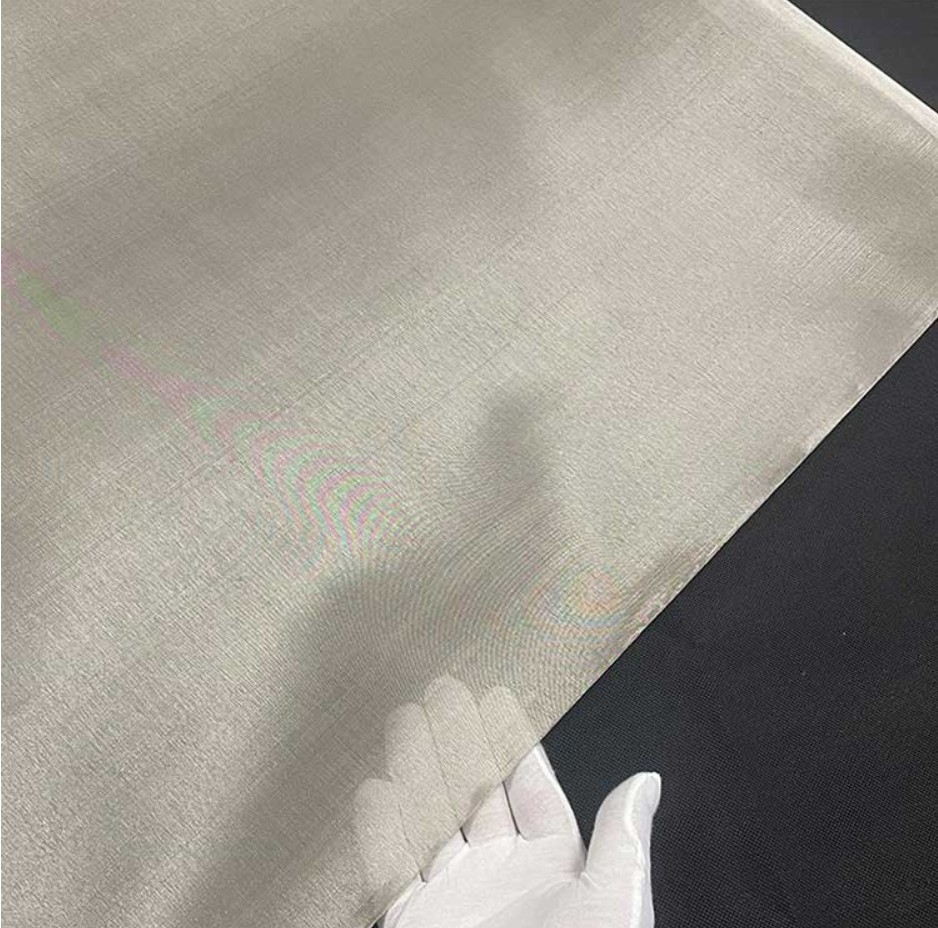

Inconel woven wire mesh is made from a specified nickel-alloy grade and woven to the opening and wire dimensions required by the design. HuiRui offers custom specifications for process screens, filter supports and heat-exposed mesh components.
Choose the alloy for the environment first, then match the mesh geometry to flow, support and handling requirements. A grade selected for oxidation resistance may not be the best choice for aqueous corrosion, and strength depends on material condition as well as alloy name.
- Material requests: 600, 601, 625, 718 and X-750, with the exact condition specified where needed.
- Custom dimensions: mesh count, wire diameter, opening, width and length.
- Quotation starting point: a drawing, mesh specification or application description.
Compare Inconel grades for woven mesh
The guide below describes general alloy characteristics. It does not assign a service-temperature rating to finished mesh or confirm every grade and weave combination.
| Grade | Typical selection focus | Important specification detail |
|---|---|---|
| 600 · UNS N06600 | Nickel-chromium-iron alloy considered where heat and corrosion resistance are both relevant. | Specify atmosphere, temperature and wire condition; strength varies with processing. |
| 601 · UNS N06601 | Oxidation-focused thermal service; its aluminum content contributes to oxidation resistance. | Include operating atmosphere, thermal cycling and loading for heat-exposed mesh. |
| 625 · UNS N06625 | Strength and corrosion resistance, including many chemical and marine environments. | Provide the process chemistry and design conditions rather than choosing from temperature alone. |
| 718 · UNS N07718 | High-strength, age-hardenable alloy for designs with defined mechanical requirements. | State the required condition, heat treatment and acceptance criteria. Finished-mesh feasibility needs confirmation. |
| X-750 · UNS N07750 | Precipitation-hardenable alloy considered where elevated-temperature strength is important. | Heat treatment and exposure conditions affect properties; confirm them with the mesh specification. |
If your design already specifies a grade, include it in the inquiry. If not, describe the environment and the function of the mesh.
Custom mesh specification guide
Custom Inconel woven-mesh specifications are available. Use the combinations below as starting points for a custom quotation, or send your drawing and application requirements. This is not a stock list.
| Alloy example | Mesh count / in | Wire diameter (mm) | Calculated nominal opening (mm) |
|---|---|---|---|
| Inconel 600 | 6 | 0.8 | 3.4333 |
| Inconel 601 | 8 | 0.5 | 2.675 |
| Inconel 600 | 10 | 0.46 | 2.08 |
| Inconel 600 | 12 | 0.8 | 1.3167 |
| Inconel 600 | 20 | 0.5 | 0.77 |
| Inconel 601 | 40 | 0.21 | 0.425 |
| Inconel 601 | 40 | 0.23 | 0.405 |
| Inconel 600 | 45 | 0.25 | 0.3144 |
| Inconel 601 | 50 | 0.19 | 0.318 |
| Inconel 600 | 60 | 0.18 | 0.2433 |
| Inconel 601 | 80 | 0.12 | 0.1975 |
| Inconel 601 | 100 | 0.1 | 0.154 |
Select the alloy grade as well as the mesh geometry; each combination is reviewed for the requested grade. Final alloy grade, weave, tolerances and dimensions are confirmed with your quotation.
Calculated nominal opening = 25.4 ÷ mesh count − wire diameter (mm), rounded to 0.0001 mm where needed. These are nominal design calculations, not inspection results, manufacturing tolerances or certified filtration ratings.
This guide uses regular square-opening woven-mesh geometry. Dutch-weave, unequal warp/weft counts and expanded-metal designs require separate specifications.
Choose the weave for your inconel mesh

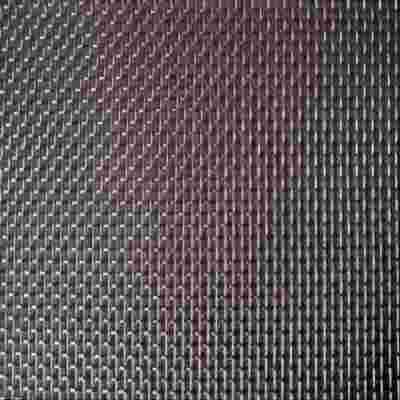

- Plain square weave: an alternating over-and-under pattern with visible openings. Specify mesh count together with wire diameter or target opening.
- Twill square weave: a staggered pattern that produces diagonal lines. It can accommodate different wire-to-opening combinations from plain weave; the final structure is selected with the specification.
- Dutch weave: closely packed wires create a filtration path rather than the visible square openings shown in the guide. Include warp/weft counts, wire sizes or the filtration target for a separate assessment.
Custom weave requests are welcome. Suitability depends on the alloy grade, wire condition and dimensions; not every combination is suitable for every grade.
Specify your custom inconel mesh
Start with mesh or opening, finished size and quantity if known. A drawing, reference sample description or short application note is enough to begin.
| Custom requirement | Details to include |
|---|---|
| Alloy grade and condition | Give the exact grade or UNS designation. Include the required wire condition or heat treatment if specified by your design. |
| Mesh, wire and opening | Choose a guide row or request another combination. For square weave, state mesh count and wire diameter, or your target opening. |
| Filtration structure | For Dutch weave, include warp/weft details or your filtration target and process fluid. A calculated square opening is not a filtration rating. |

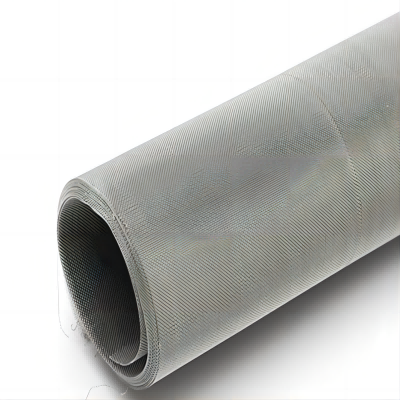

| Finished dimensions | Width × length, piece or roll format, quantity and any cut-edge or component drawing requirements. |
| Service conditions | Operating atmosphere or process medium, temperature, exposure time, thermal cycling and any load or pressure differential. |
| Inspection and documents | Mention critical tolerances, inspection requirements and material documents needed. The quotation will confirm what can be supplied. |
You do not need every technical detail before contacting us. Final grade, weave, dimensions, tolerances and order requirements are confirmed with your quotation.
Applications and operating conditions
Potential uses include heat-exposed screens, process filtration supports and mesh components for chemical-processing or laboratory equipment. Alloy choice and mesh construction should be assessed together.
- Thermal-processing screens: provide atmosphere, exposure time, thermal cycling and mounting details.
- Filter and support layers: identify the fluid or gas, opening or filtration target and pressure differential.
- Chemical-process components: include concentration, contaminants, temperature and cleaning conditions.
- Research and development: send sample dimensions, the test environment and any required material condition.
There is no single maximum service temperature for every Inconel grade and mesh. Fine-wire dimensions, oxidation, atmosphere, loading and exposure time all affect the design.
For other alloy options, compare Hastelloy woven wire mesh, Monel woven wire mesh or the special material mesh range.
Frequently asked questions
Which Inconel grade should I choose for a heat-exposed screen?
Start with the atmosphere, temperature, exposure time and load. Alloy 601 is commonly considered for oxidation-focused service, but 600, 625 and other grades have different strengths. The alloy name alone does not establish a finished-mesh temperature rating.
Are Inconel 718 and X-750 supplied with the same properties as other grades?
No. Both are hardenable alloys whose properties depend strongly on condition and heat treatment. Include the required condition and acceptance criteria; wire availability, weaving and final processing must be confirmed for the design.
Is a square mesh opening the same as a filtration rating?
No. The guide gives nominal geometric openings calculated from mesh count and wire diameter. Actual particle retention also depends on structure and operating conditions. Dutch weave requires a separately specified filtration structure.
Can you quote dimensions or mesh combinations outside the guide?
Yes. Send a drawing or your target mesh, wire diameter or opening, finished size and quantity. Custom combinations can be reviewed without a complete specification at the first inquiry.
Can material documentation be included?
State the required grade verification, material records or inspection documents before ordering. The quotation will confirm the documents available for the proposed material and order.
Request an Inconel mesh quote
Send a drawing, a mesh specification or a short application description. We can start with the information you have.
Dimensions and quantity are helpful if known. No complete specification is required to get in touch.
