Pleated Sintered Filter Element for Polymer Melt
1. Product Overview

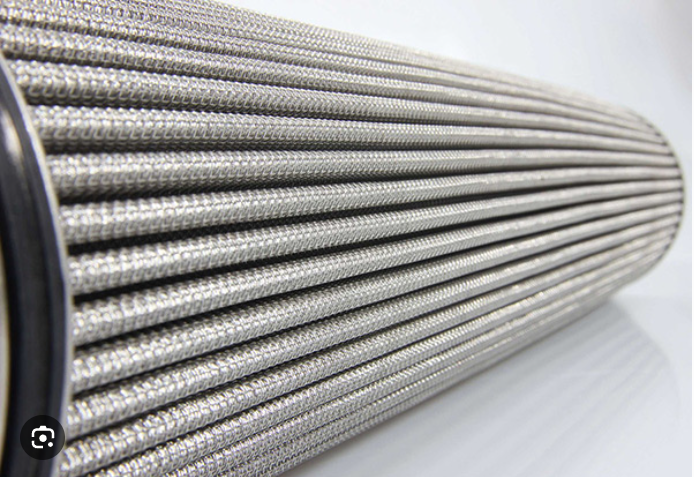

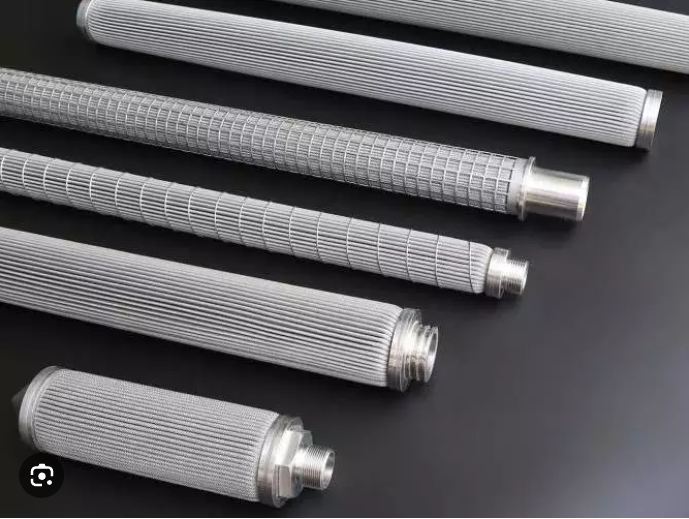

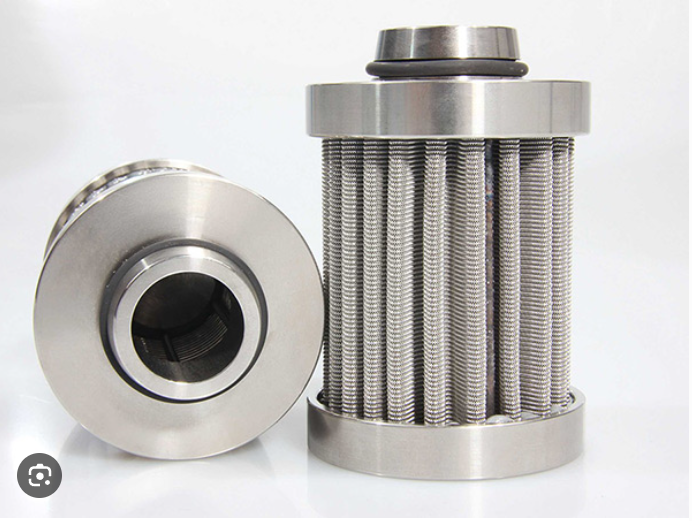

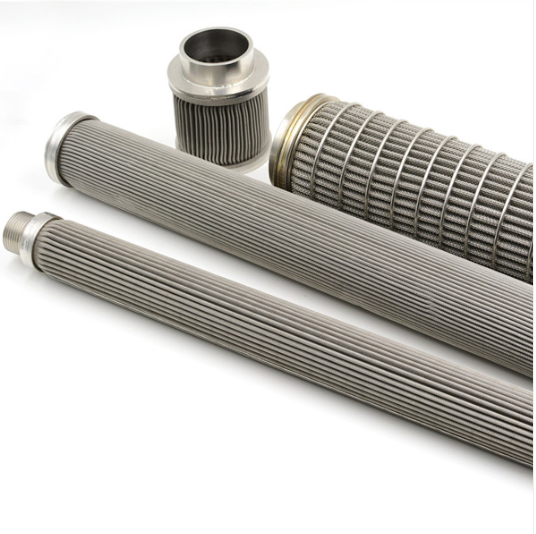

The Pleated Sintered Filter Element is specially designed for high-temperature, high-viscosity, and high-pressure polymer melt filtration. It is made from stainless steel sintered fiber felt or multilayer woven wire mesh, structured into a pleated cylindrical form to significantly increase filtration area and contaminant holding capacity.
This advanced filter is widely used in chemical fiber, plastic, film, battery, petrochemical, and precision chemical industries as a high-efficiency upgrade over traditional mesh screen filters.
2. Structure & Materials
-
Filtration Media: Sintered metal fiber felt or multilayer wire mesh
-
Support Layer: Coarse stainless steel mesh for structural reinforcement
-
Shell & Core: Stainless steel 304/316L/904L, Hastelloy, Titanium, etc.
-
Connection Options: International standards 222/226/220, threaded, flange, clamp, or custom end connections
The pleated construction provides 5–10 times more filtration area than conventional smooth filters, enhancing flow capacity, reducing pressure drop, and extending filter life.
3. Key Features
✅ Large Filtration Area
-
Pleated design drastically expands surface area
-
Improved dirt holding, lower pressure loss
✅ High Temperature & Pressure Resistance
-
Operates reliably at temperatures up to 300°C and pressures up to 30 MPa
-
Ideal for polyester, engineering plastics, hot melt adhesives, etc.
✅ Precision Filtration
-
Available filtration accuracy from 1 to 300 microns
-
Uniform pore distribution ensures consistent performance
✅ Washable & Reusable
-
Durable construction allows for ultrasonic, chemical, and backflushing cleaning
-
Significantly lowers long-term operating cost
✅ Excellent Corrosion Resistance
-
Withstands a wide range of chemicals and harsh operating conditions
-
Ideal for acidic, alkaline, and viscous fluid filtration
4. Typical Applications
▶ Chemical Fiber Industry
-
Melt filtration of PET, PA, PP during spinning
-
Applied in filament, staple fiber, and nonwoven production
▶ Film & Plastic Processing
-
Used in film blowing, casting film, and lithium battery separator film
-
Prevents impurities and ensures high-quality film extrusion
▶ Petrochemical & Fine Chemicals
-
Filtration of viscous chemical fluids
-
Gas/steam purification, catalyst recovery and protection
▶ New Energy & Battery Production
-
Used in separator manufacturing, BOPP films, and electronics-grade polymer filtration
5. Technical Specifications (Reference)
| Parameter | Value/Range |
|---|---|
| Filtration Accuracy | 1–300 μm |
| Operating Temperature | ≤ 300°C |
| Maximum Working Pressure | ≤ 30 MPa |
| Dirt Holding Capacity | 16.9–41 mg/cm² |
| Material Options | SS304, SS316L, 904L, Titanium |
| Connection Types | 222, 226, 220, Threaded, Flanged |
| Filter Format | Cylindrical, Pleated, Single/Double Open End |
6. Customization & Support
We offer full customization services based on:
-
Size, filtration accuracy, and material selection
-
Adaptation to high-temp, corrosive, or high-viscosity environments
-
Filter housing or system-level integration
Send us your operating data or a drawing, and our technical team will provide fast matching, solution proposals, and sample services.
7. Packaging & Delivery
-
Individually wrapped in dustproof plastic
-
Shipped in reinforced cartons or export-grade wooden boxes
-
Custom packaging and palletization available upon request
-
Export documentation and certification provided
